Track Tools for Railway Maintenance and Repair Works
Track maintetnace tools and equipment
Hand operated tools and machines for rail are widely used for track construction and maintetnace. They are mandatory for the safe and efficient railway transport operations.
RGU-1M group-type motor straightener
The group-type motor straightener is designed for straightening of tracks and switch pointes laid on timber and cast sleepers during repair and routine track maintenance. It is assembled of 4 straighteners in one group operated by a gasoline-station or by a hand pump mounted on the trolley.
| Maximum straightening force, ton-force | 30 |
| Hydraulic fluid pressure, kg/cm² | 100 |
| Piston stroke, mm | 120 |
| Overall dimension (height/width/length), mm | 950х600х1055 |
| Weight of straightener, kg | 13,2 |
| Weight of complete set, kg | 125 |

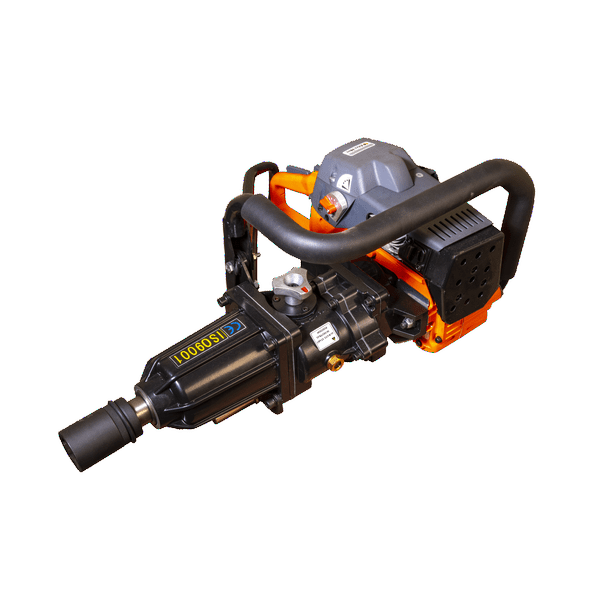

BGM-01.50-180 gasoline impact wrench
BGM-01.50-180 gasoline impact wrench is designed for mounting and dismounting operations in conditions when use of electrical, pneumatic or hydraulic wrenches is difficult or impossible.
The gasoline impact wrench allows to carry out mounting and dismounting of rigid threaded joints, making drills on railway tracks, bridgeworks, power transmission lines and other structures under difficult field conditions and absolutely independently. When used for repair of railway tracks the impact wrench allows to do and undo terminal, embedded and fishplate bolts, tighten screw spikes and make drills in timber sleepers for hook-headed spike and screw spikes.

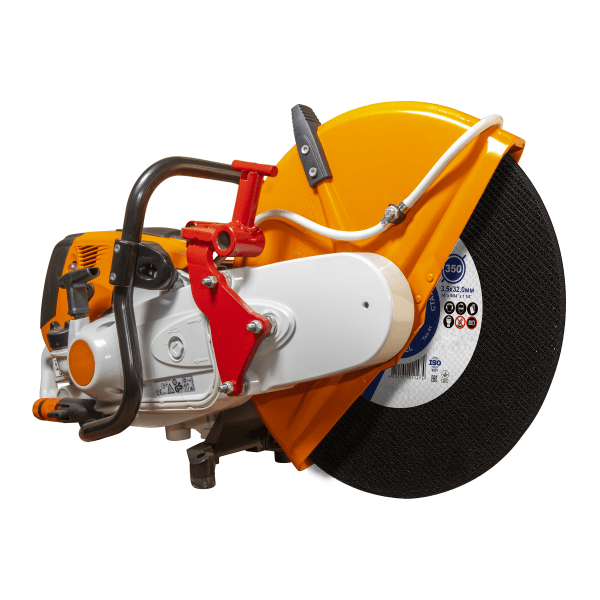

Rail Cutter VR-1
Rail Cutter VR-1 is intendent for efficient and fast cutting of maximum strength rails and used for track construction and maintetnace.
| Drive | Air cooled two-cycle petrol engine |
| Engine type | Stihl TS800 |
| Engine output | 5,0 kW at 9000 rpm |
| Max. cutting disc speed | 4290 rpm |
| Cuttig time (approx.) | 2 min |
| Cutting disc size | 400х4,0х32 mm |
| Disc circumferential speed | 80 m/s |

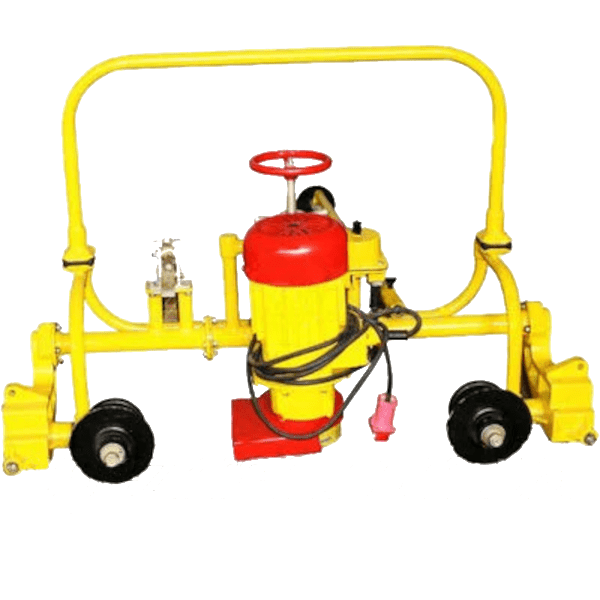

Rail Grinder VSR-1
Rail Grinder VSR-1 is designed for the fine finishing of the rail head running surface and its flanks.
Rail Grinder has two modifications :
- VSR-1-01 — basic model with rollers for the grinding the defects after butt welding, surfacing and cold working. It can also be used for the removal of rail corrugations up to 300 mm
- VSR-1 — model without rollers for the removal of all above mentioned deffects except rail corrugations.

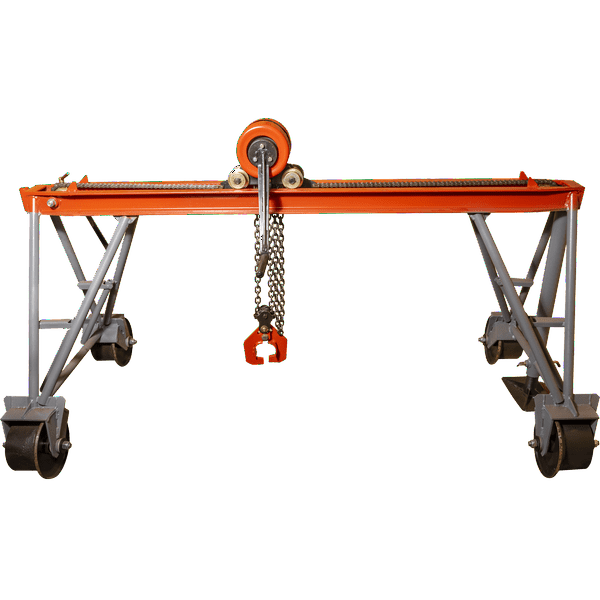

PPZR-1000 mobile machine for rail replacement
PPZR-1000 mobile machine is designed for replacement and shifting of all types of rails along tracks with standard gage during repair and routine track maintenance.
| Crane lifting capacity, t | 1 |
| Handle force during lifting of load, kgf | 8 |
| Handle force during travel of trolley with maximum load, not more than, kgf | 16 |
| Crane travel force while on track with maximum load, not more than, kgf | 25 |
| Rail side travel, mm | 1100 |
| Lifting height, mm | 450 |
| Overall dimension (height/width/length), mm | 986х860х1756 |
| Weight, kg | 80 |
Hydraulic and electrical track equipment
www.gdc.com.ua
UKRAINE
61072, Kharkiv
vul. Tobolska, 42, of. 406
+380 57 717-56-01
+380 57 758-69-82
+380 93 152-04-32
