Passenger Wagon Sanitary Module

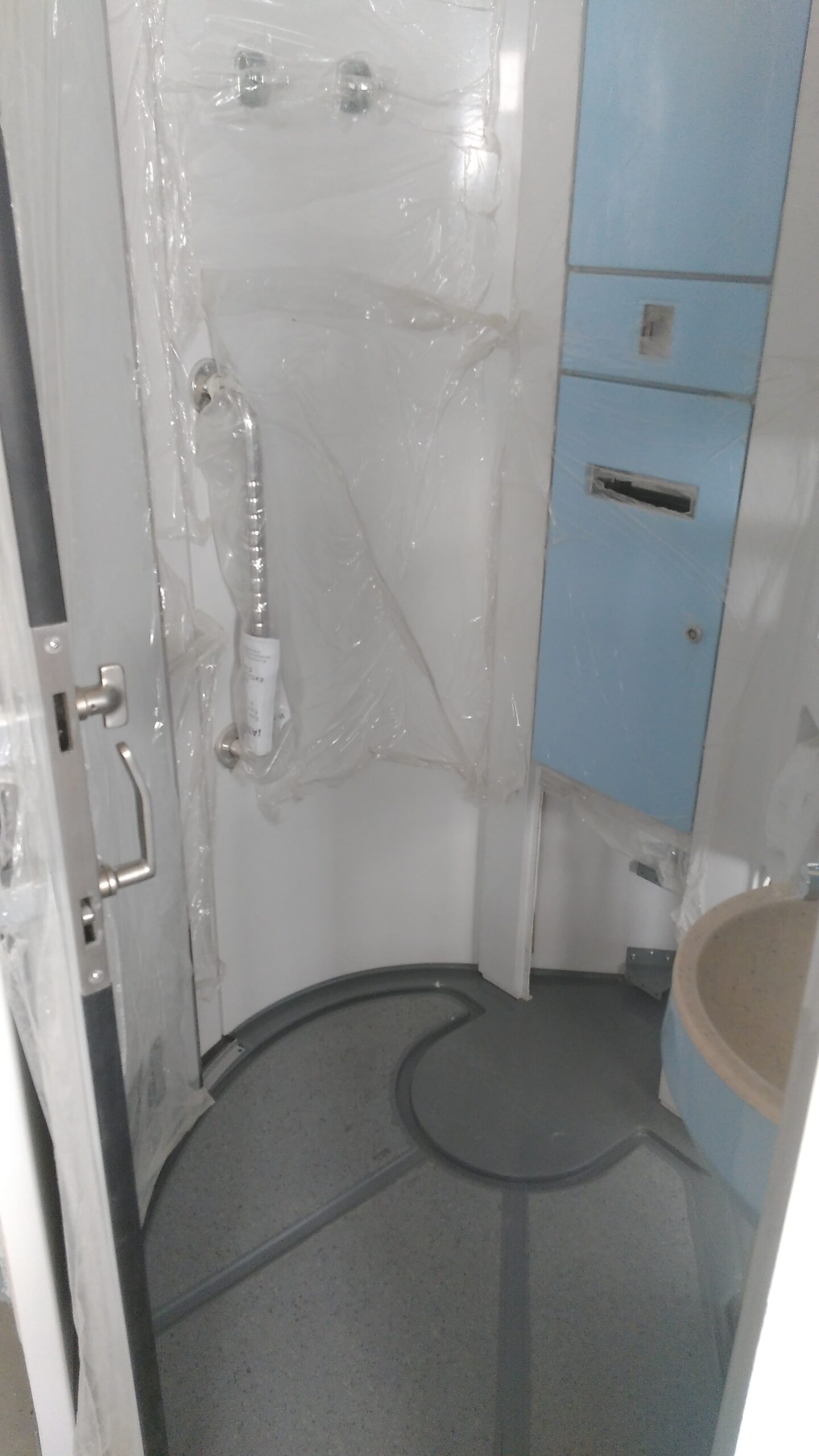

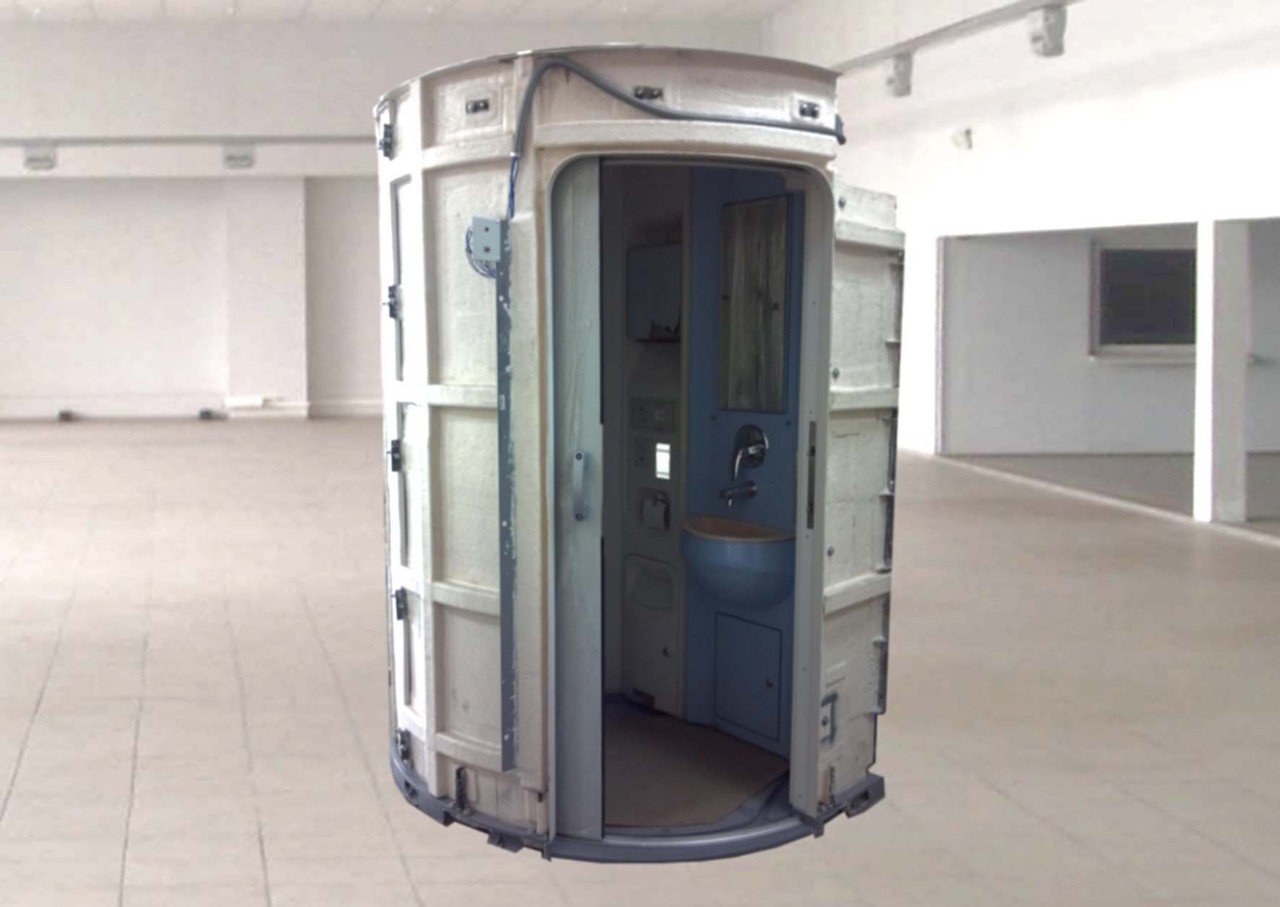

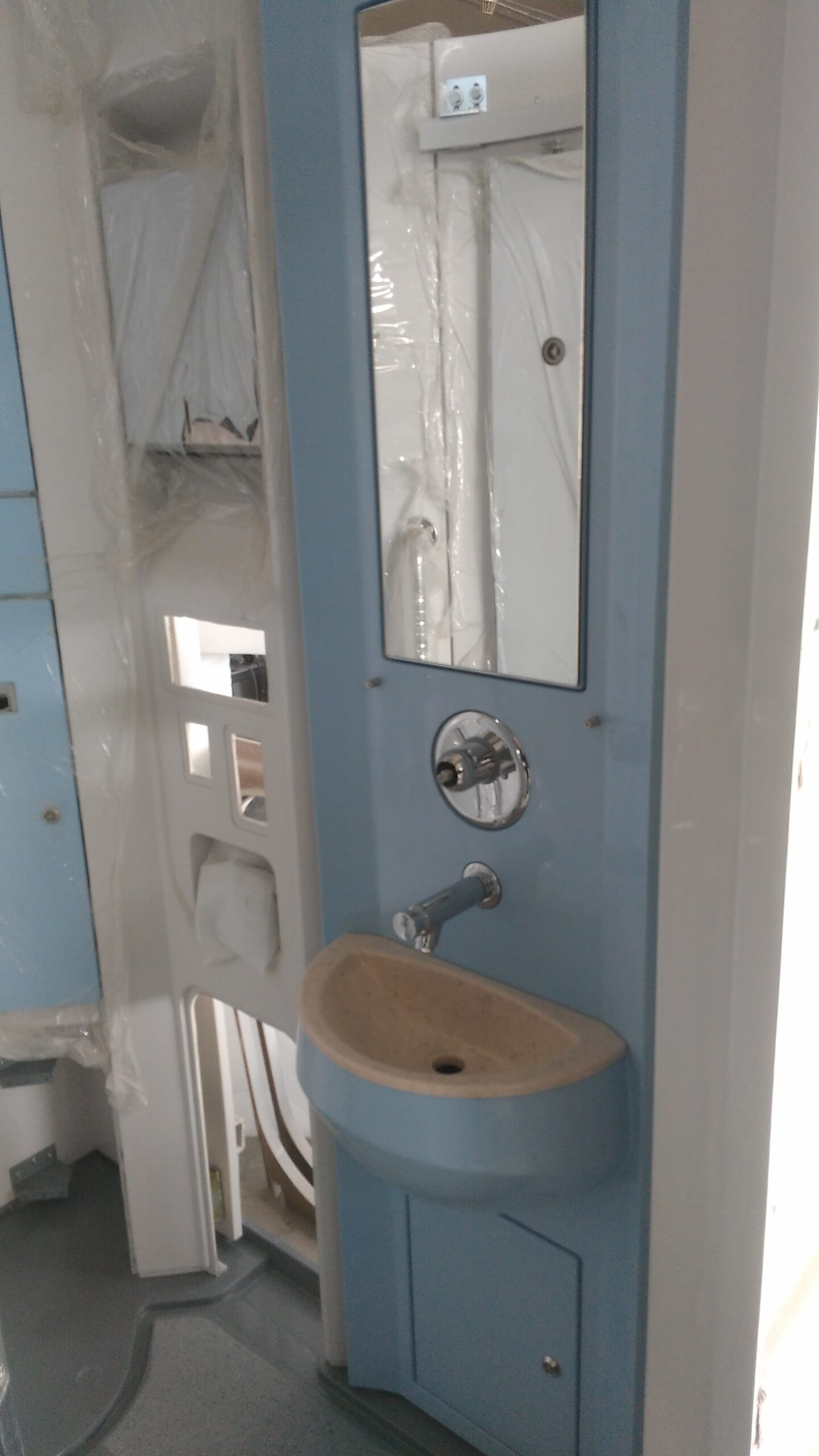

The sanitary module of a passenger wagon is an assembly unit consisting of a restroom with a sink and a toilet block, ready for installation in a train carriage. It contains all the necessary components for connection to water supply and power systems

This module is installed in passenger cars of locomotive-hauled trains, diesel trains, and electric trains to ensure sanitary and hygienic conditions for passengers and train crews during the journey, as well as to protect the environment.

The module is designed to receive and dispose of human waste through intensive and dosed flushing into a waste tank, creating necessary comfortable conditions.

The module is supplied with electricity and water from the wagon’s sources.

The module’s equipment provides automatic control of the flushing system, module lighting, ventilation, and heating of the waste tank and pipes. It also indicates the functional status of the electrical equipment through light signals.

Key parameters of the electrical equipment of the passenger wagon sanitary module:

– Voltage of the equipment power supply, V:

  — DC power grid 24 V — from 18 to 30;

  — DC power grid 110 V — from 85 to 150;

– Power consumption at the nominal voltage of the power supply 110 V, kW, not exceeding:

  — heating of the waste tank and pipes (at -40 °C) — 2.0;

  — electric razor outlets — 0.035;

  — compressor unit — 1.5;

– Power consumption at the nominal voltage of the power supply 24 V, kW, not exceeding:

  — control circuits of the toilet module, signaling, and lighting — 0.15.

Composition of the electrical equipment of the passenger wagon sanitary module:

– Electrical equipment installed in the module;

– Electrical equipment installed in the wagon;

– Subwagon electrical equipment.

List of electrical equipment installed in the sanitary module of the passenger wagon:

– Control panel;

– Toilet module;

– Conductor call panel;

– Electronic volume regulator;

– Flushing unit;

– Presence sensor;

– Announcement device;

– Temperature sensor;

– Electric heaters for blowing;

– LED spotlights;

– LED strips;

– Ceiling fan;

– Razor converter;

– Toilet occupancy limit switch;

– Connector for connection to wagon electrical equipment.

List of electrical equipment installed in the wagon:

– Conductor panel;

– Toilet occupancy indicator;

– Compressor unit with voltage converter.

List of subwagon electrical equipment:

– Waste tank with level and temperature sensors and heating element;

– Pipe heating system;

– 80% tank fill indicators.
