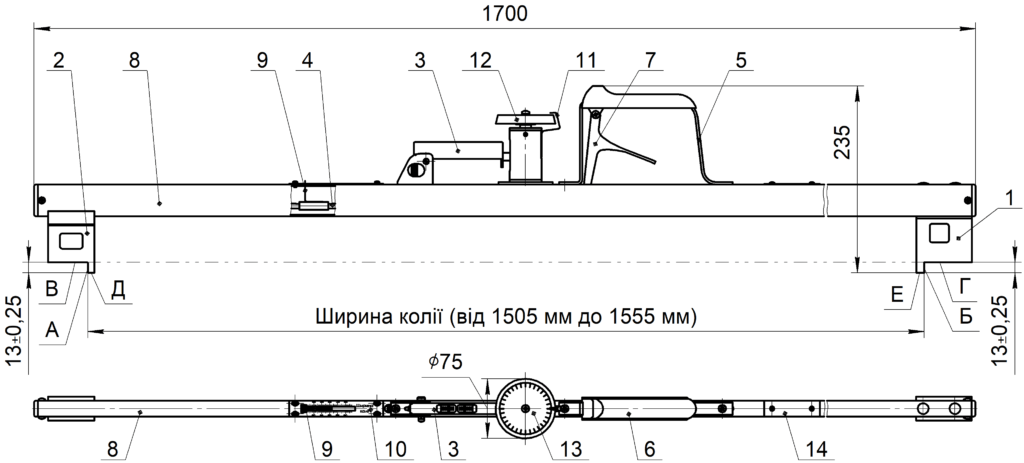

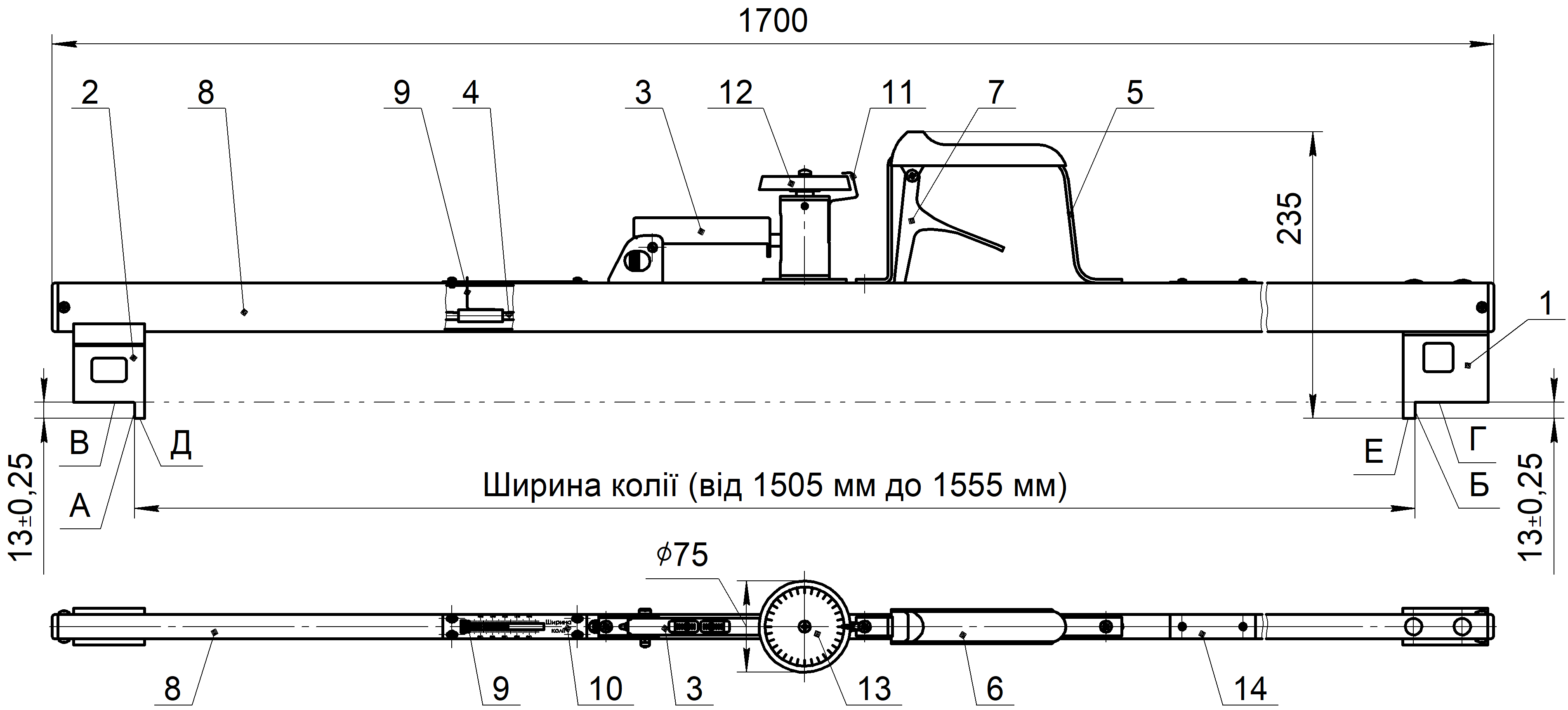

The track gauge template ShK 1520/2 is designed for monitoring the condition of the railway track with a nominal width of 1520 mm, specifically for measuring track parameters. The product is intended for operation in regions with a moderate climate and ambient temperatures ranging from minus 40 to plus 50ºC.

The relative humidity of the air is within 98% (across the entire range of working temperatures), atmospheric pressure from 84.0 to 106.7 kPa. The template can be used on single-track and multi-track sections of main tracks with rails of types P50, P65, P75, 60E1 (UIC60).

Technical specifications and purpose of the track gauge template ShK 1520/2:

– Nominal track width, mm – 1520

Measurement ranges of the track gauge template ShK 1520/2:

– Track width, mm – from 1505 to 1555
– Relative elevation of one rail thread over the other (level), referenced to a base of 1600 mm, mm – from 0 to ±160
– Limits of permissible main error in measuring track width, mm ± 1.0
– Limits of permissible main error in level control, mm ± 1.0
– Scale division value for track width, mm 1.0
– Scale division value for level control, mm 1.0
– Static load, N, not less than 392
– Maximum force on the pull lever, N, not more than 70
– Electrical insulation resistance, MOhm, not less than 20

Overall dimensions of the track gauge template ShK 1520/2, mm:

– Length – 1700
– Width – 75
– Height – 235

Weight, kg – 2.65
