Universal Template KOR-5MN

Universal Template KOR-5MN, Model 00316

The Universal Template KOR-5MN is designed for outdoor monitoring of the following parameters:

– Gaps between rail joints;
– Mutual position of the point and frame rail;
– Marking and control of holes in the joint connection of rails;
– Depth and extent of surface defects used to assess the geometric parameters of railroad track defects.

The template is intended for operation in climatic conditions corresponding to the climatic performance of UHL placement category 1, operating condition group 5 according to GOST 15150-69.

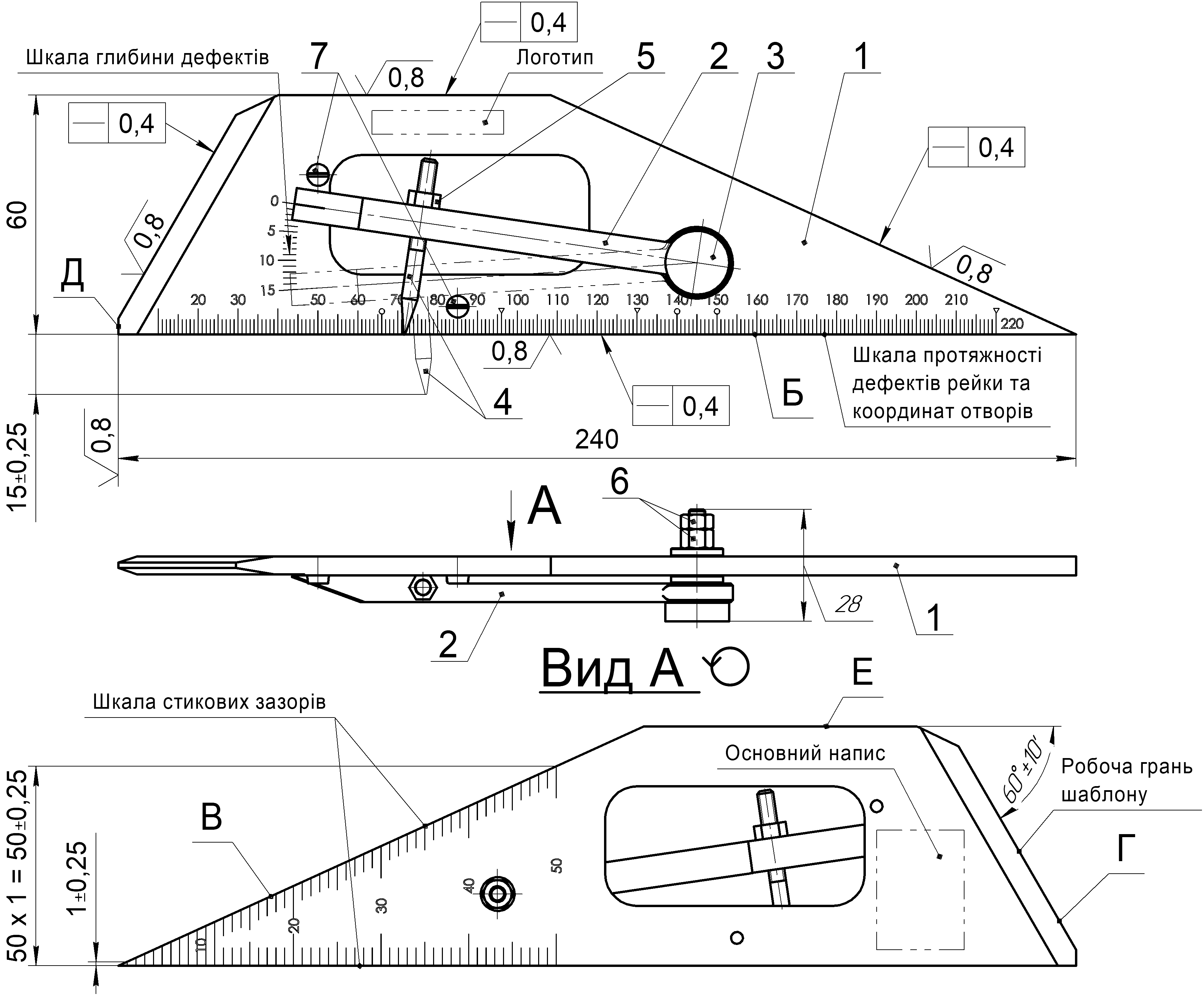

Main technical characteristics of the KOR-5MN template:

– Range of measurement of gaps between rail joints, mm: 1 – 50
– Range of measurement of depth of surface defects, mm: 0 – 15
– Range of measurement of extent of surface defects, mm: 10 – 220
– Coordinates of holes in the joint connection of rails, mm: 66, 96, 130, 140, 150, 220
– Maximum permissible error in measuring rail joint gaps, depth and extent of surface defects, coordinates of holes in the joint connection of rails, mm: ± 0.25
– Scale division value, mm: 1
– Inclination angle of the working surface (control of the mutual position of the point and frame rail): 60º ± 10´
– Deviation from straightness of working surfaces not more than, mm: 0.4
– Overall dimensions not more than, mm: 240×60×28
– Weight not more than, kg: 0.3
