Track gauge template ShK 1520/8

Track gauge template ShK 1520/8

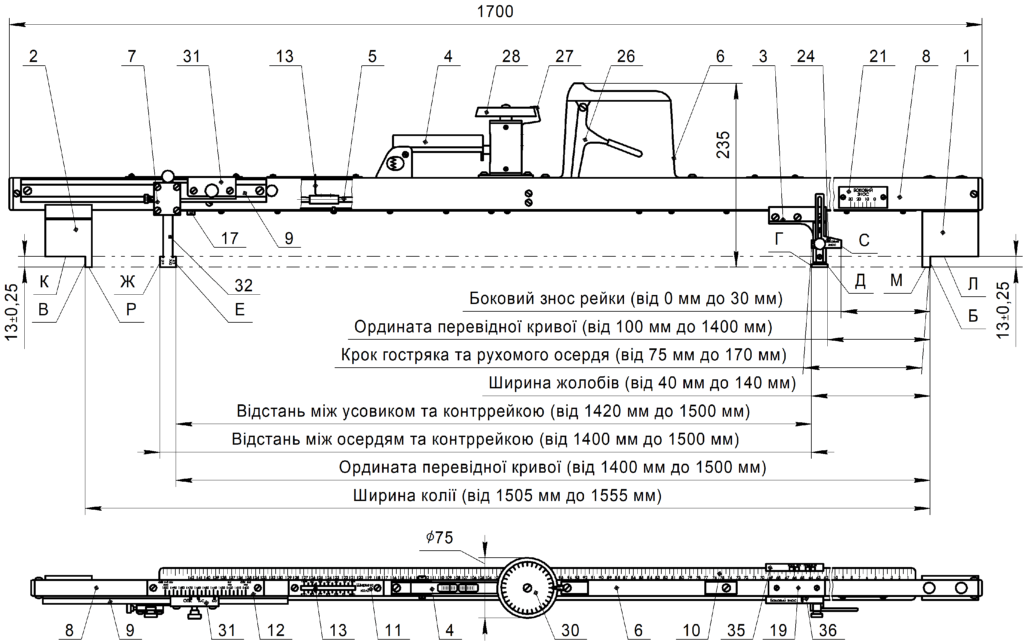

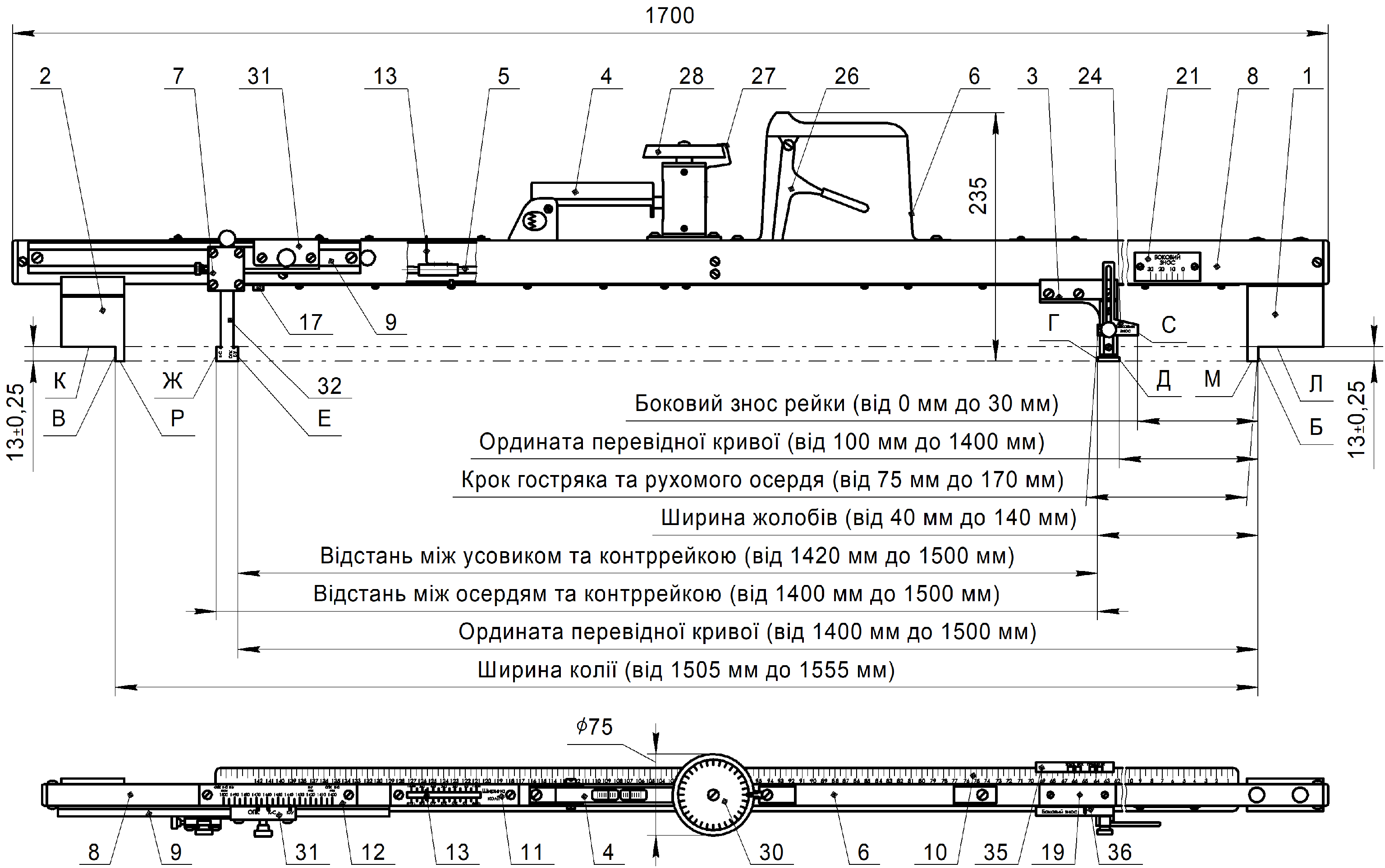

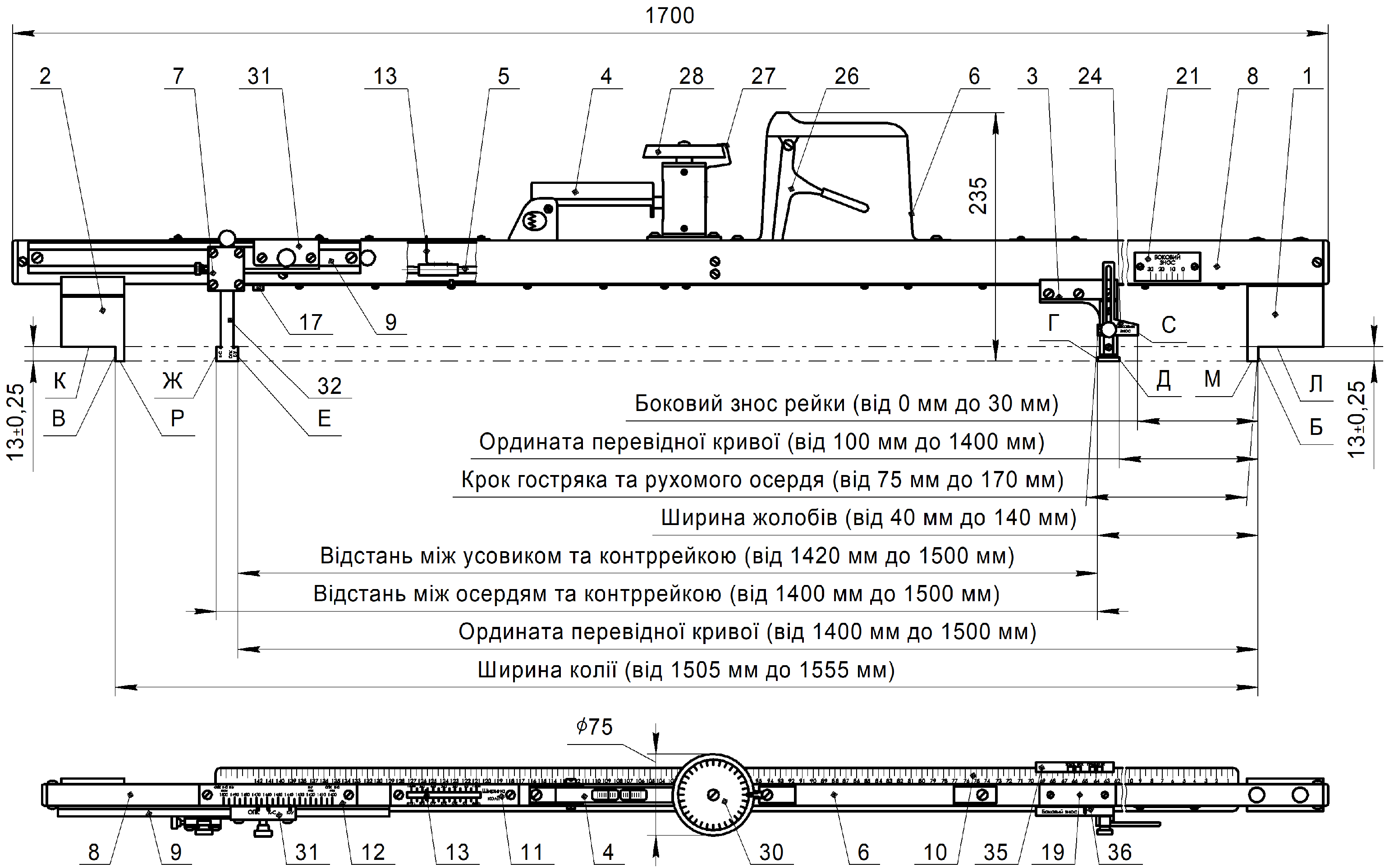

The design of the track gauge template ShK 1520/8 allows for the measurement of railway track parameters on single-track and multi-track sections of main tracks, on station tracks, on switch points, in the area of passenger platforms, railroad crossings, railroad bridges, electrified sections of railway tracks, on tracks with rails of types P50, P65, P75, 60E1 (UIC60).

Main Technical Data and Purpose of the Track Gauge Template ShK 1520/8:

– Nominal track width, mm – 1520

Measurement ranges of the track gauge template ShK 1520/8 (abbreviated markings on the template in parentheses):

– Track width, mm: from 1505 to 1555
– Groove width, mm: from 40 to 140
– Point pitch and movable frog cross-section, mm: from 75 to 170
– Ordinates of transfer curves, mm: from 100 to 1500
– Distance between the working faces of the frog cross-section and check rail, mm: from 1400 to 1500
– Distance between the working faces of the flange cross-section and check rail, mm: from 1420 to 1500
– Rail lateral wear, mm: from 0 to 30
– Elevation of one rail thread over the other (level), referenced to a base of 1600 mm, mm: from minus 160 to plus 160
– Maximum permissible error in measuring linear dimensions, mm: ± 1
– Maximum permissible additional temperature error, mm: ± 0.6
– Linear scale division value, mm: 1
– Level scale division value (circular), mm: 1
– Static load, N, not less than 392
– Maximum force on the pull lever, N, not more than 70
– Electrical insulation resistance, MOhm, not less than 20

Overall dimensions of the track gauge template ShK 1520/8, mm:

– Length: 1700
– Width: 75
– Height: 235

Weight, kg: 3.0±15%
