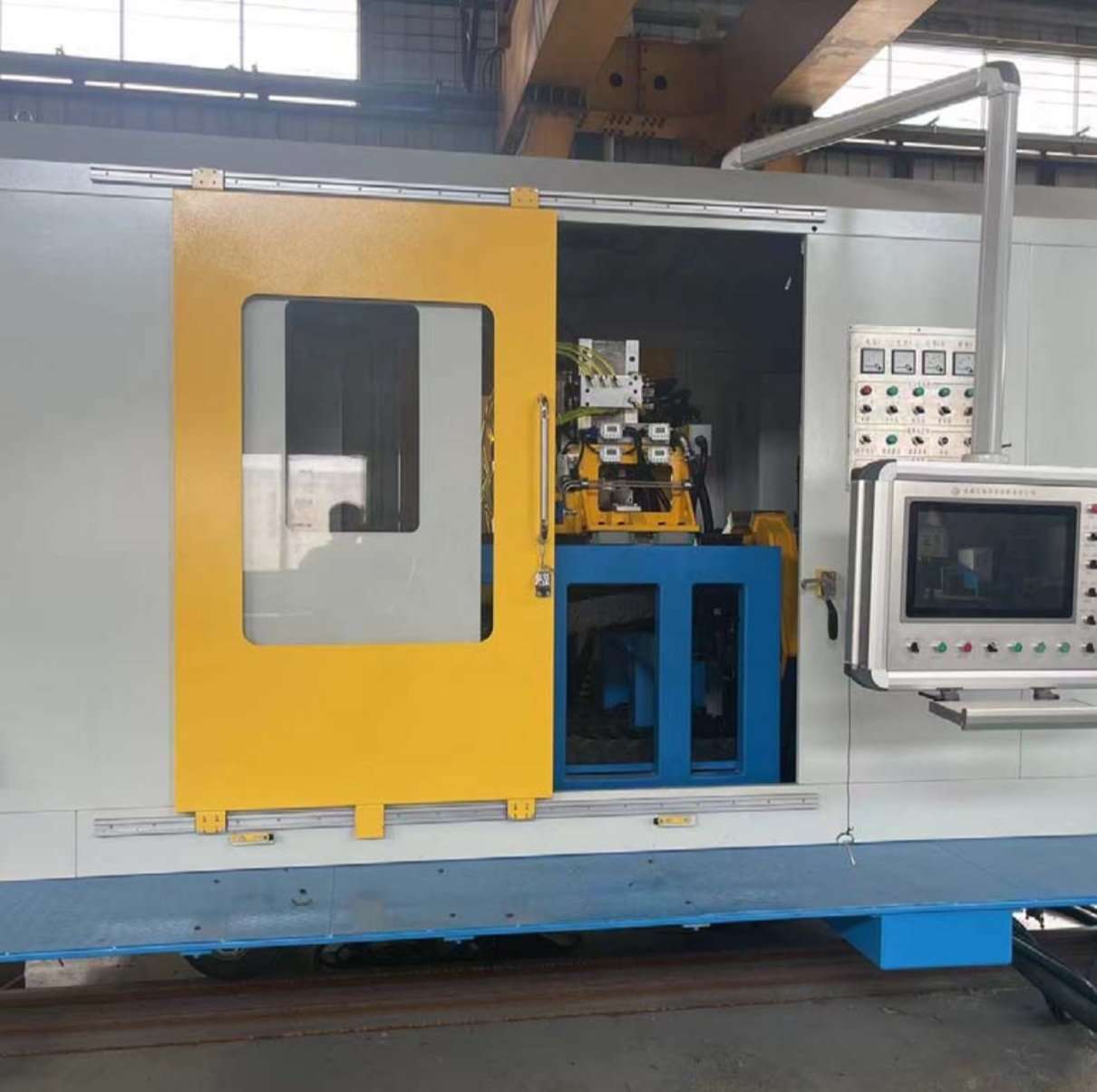

Stationary dual-frequency equipment for rail normalization

Stationary dual-frequency equipment for rail normalization is suitable for rails of 50 kg/m, 60 kg/m, and 75 kg/m.

It employs fully automatic thermoregulated frequency conversion technology (1-2.5 kHz), with the entire process being executed automatically without any additional actions required.

Technological parameters can be adjusted according to specific requirements, such as normalization temperature, frequency conversion temperature, and other settings, which can be configured on a computer.

Technological curves can be displayed, stored, and viewed in real-time mode.

Additionally, the equipment is equipped with various protective functions.

A gas station (compressor, gas storage tank) is installed at the rail normalization workplace, with pipelines laid to each gas station, and equipped with pressure regulators, quick-release couplings, and gas gun heads with tubes.

The pressure and gas flow of the gas station must meet the requirements of the rail welding line.
