New York Central 3001 reaches Indiana shop for $4.3m restoration
The New York Central 3001 restoration entered its next phase on September 15 after the locomotive completed its first mainline journey in more than 40 years.

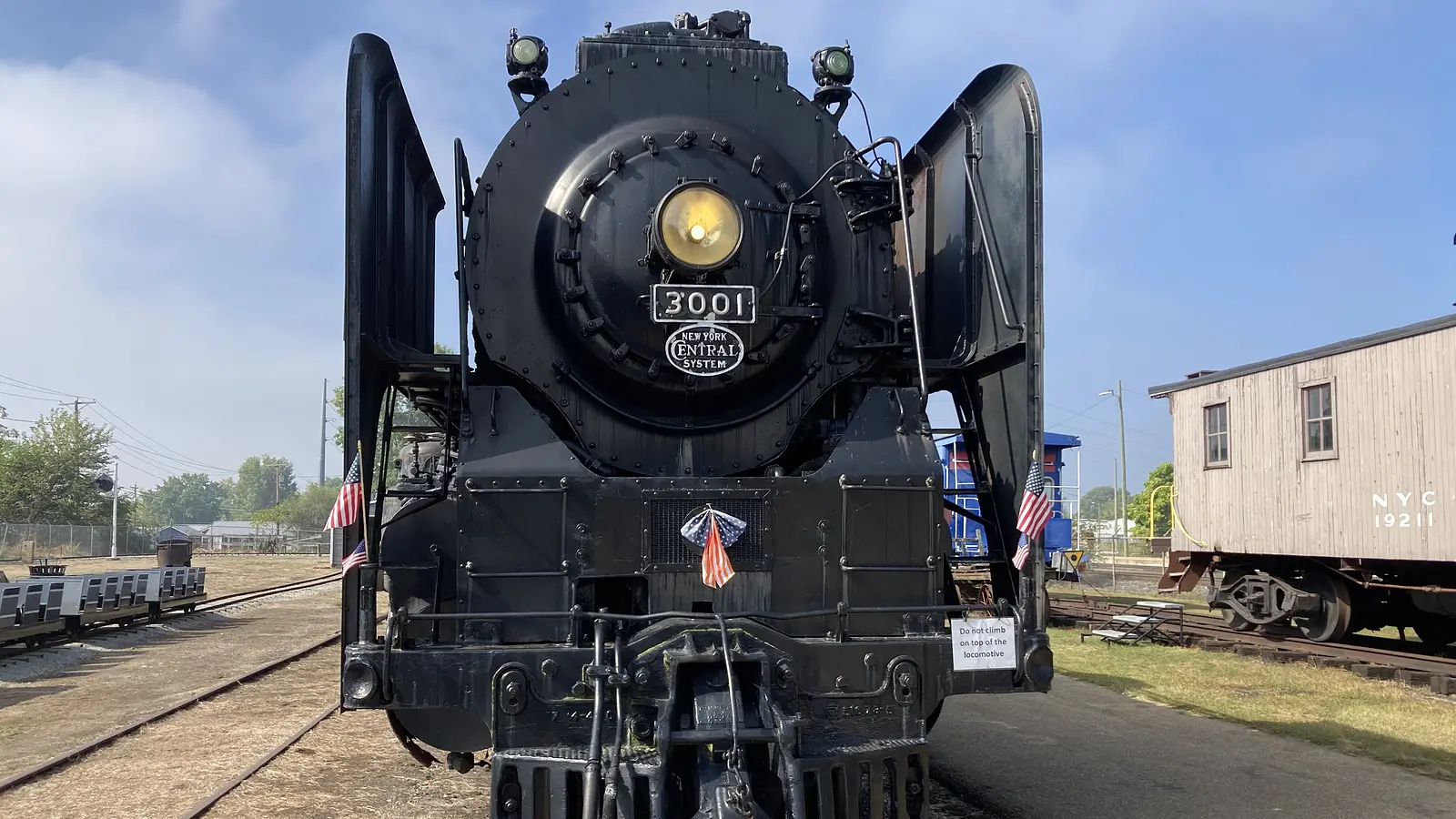

Norfolk Southern hauled the 1940 “Mohawk” steam locomotive over its main line that day. It left the National New York Central Railroad Museum in Elkhart, where it had been displayed since 1988. According to the society, it was the engine’s first main line trip in more than 40 years, coming 69 years after the New York Central retired it. The train paused several times along the way so crews could check parts and bearing temperatures.
Getting there took more than two years of preparation, planning and fundraising. Volunteers uncovered and repaired track in the museum yard, inspected every axle roller bearing, removed the main and side rods and rebuilt the air brakes to the modern 26L standard. Norfolk Southern, Kano Laboratories, Horizon Rail and Midwest Rail have sponsored the effort. The society says more than a million people followed the move online.
Restoration budget and fundraising milestones
The society’s published restoration budget sets the full return to operation at $4.3 million. Boiler repairs and steam pipes form the largest single item at $900,000, and a further $875,000 is set aside for contingency, inflation and a reserve fund. Relocation was budgeted at $250,000. The society’s arrival announcement on September 17 spoke of an estimated $4 million effort to return the engine to operation.
| Budget item | Estimated cost |
|---|---|
| Relocation | $250,000 |
| Boiler repairs and steam pipes | $900,000 |
| Valve gear and valves | $200,000 |
| Cylinders, pistons and crossheads | $250,000 |
| Wheelsets, trucks and axles | $300,000 |
| Frame, suspension and running gear | $350,000 |
| Air brakes and brake rigging | $100,000 |
| Appliances and pipework | $400,000 |
| Tender overhaul, including wheelsets | $300,000 |
| Ancillary parts, fit and finish | $300,000 |
| Contingency, inflation and reserve fund | $875,000 |
| Sum of listed items (Railway Supply calculation) | $4,225,000 |
Boiler repairs and steam pipes are the biggest single cost, ahead of the reserve for contingency and inflation. The 11 published items add up to $4,225,000; the society puts the overall estimate at $4.3 million and says the engine’s real condition will only be clear once it is fully dismantled. Source: Fort Wayne Railroad Historical Society restoration budget.
Fundraising opened in October 2024 with a $100,000 challenge grant and a first target of $500,000. On June 1, 2025, the society announced that gifts from 920 donors had met that target; the money was intended for initial preparation and relocation. Its next milestone is an additional $300,000 by the end of 2026. At the time of publication, the project website displayed that goal at 33%.
The society says the restoration will move at the speed of fundraising and that sustaining progress will require as much as $1 million a year, and possibly more. With the whole $4.3 million in hand, the work would take roughly two years, it estimates, and its aim is to have all funding raised before 2029. It has not set out a target date for the engine’s return to service.
Launching the campaign in 2024, Kelly Lynch, the society’s executive director, described the milestone approach this way:
“As much as this effort may be driven by emotion and history, it has to be driven by data and logic, too.”
Mechanical condition after decades outdoors
The move itself is meant to let crews safeguard the locomotive, take it fully apart, inspect it and carry out repairs. The society expects extensive work on the boiler, firebox, running gear, tender, appliances and other systems. No. 3001 spent decades outdoors and has not run under steam since the 1950s. Early checks found no water intrusion or rust in the roller bearings. Still, the society cautions that the true mechanical condition will not be known until the engine is completely dismantled.
Mohawk class history and operating plans
Built by the American Locomotive Company, No. 3001 was one of 25 L-3a class 4-8-2s designed for both fast passenger trains and heavy freight. The New York Central owned 600 locomotives of that wheel arrangement, more than any other US railroad. The society describes No. 3001 as the largest surviving New York Central steam locomotive and the only surviving member of the L-3a class. After retirement in 1957 it was sold to the Texas & Pacific Railway for display in Dallas, later passed to the Museum of the American Railroad and arrived in Elkhart in the 1980s.
According to the society’s history of the engine, only four New York Central steam locomotives were preserved: 0-6-0 switchers Nos. 6721 and 6894 and 4-8-2s Nos. 2933 and 3001. No. 3001 owed its survival to a replacement order. The Texas & Pacific had put its own 2-10-4 No. 638 on display at the Texas State Fairgrounds in 1953, but vandals damaged it so quickly that it was scrapped in place in 1955. The railroad then bought No. 3001 from the New York Central in 1957 and repainted it as T&P No. 909. In Elkhart, the city leased the locomotive for 100 years in or about 1987, and it stood uncovered from 1988 until this month’s move.
In 2023, the City of Elkhart and the Museum of the American Railroad agreed to transfer ownership to the society, and the restoration project was announced publicly in October 2024. Once overhauled, No. 3001 is planned to run over former New York Central track on the Indiana Rail Experience, the heritage operation the society runs with the Indiana Northeastern Railroad, pulling restored New York Central passenger cars.
Open house at the New Haven shop
The public can see the locomotive at a free open house at the shop, 15808 Edgerton Road in New Haven, on Saturday, September 26, from 10 a.m. to 3 p.m. Nickel Plate Road Pullman No. 1, the former private car of brothers Oris and Mantis Van Sweringen, will also be on view.
